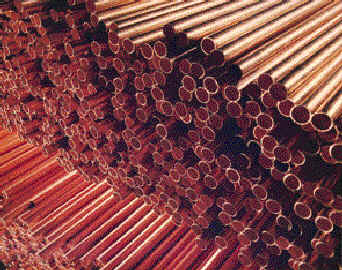

hard copper tubes



:: Copper tubes are widely applied:





Copper tubes - dimensions, allowable pressures and weights

DxS (mm)

6x1

8x1

10x1

12x1

15x1

16x1

18x1

22x1

28x1,5

35x1,5

42x1,5

54x2

76x2,5

Pressure (bar)*

145

109

87

71

57

52

48

38

46

36

30

31

25

Weight (kg/m)

0,140

0,197

0,253

0,309

0,393

0,421

0,477

0,590

1,116

1,411

1,705

2,919

5,158

* Values indicated for pressure in the table above are computed for soft tubes with safety factor N=5. Values indicated for allowable pressure relate only to tubes, not to their joints.



Weight and maximum allowable working pressure of fluids are computed using the following equations for each copper tube size:

For weight:

For pressure:

Q = (D - S) x S x π x γ, gr/m

P = 200 Rm S / DN, bara

where: where:
D - outer diameter, mm 200 - conversion constant
S - wall thickness, mm Rm - tensile strength, N/mm²
γ - specific weight of copper, 8.94 kg/dm³ S - wall thickness, mm
π - 3,14 D - outer diameter, mm
  N - safety factor (5)





 ::  Half Hard copper tubes   R250


Mechanical properties according to EN 1057 for half-hard copper tubes

Temper

Temper designation

Tensile strength (N/mm²)

Elongation (%) A5

Hardness HV5 (approximately)

half-hard

R250

min. 250

30

75-100

Delivery conditions and packaging for half-hard copper tubes

Temper designation

Outer Diameter (mm)

Wall thickness (mm)

Delivery condition

Packaging

R250

5 - 76

0,5 – 2,5

up to 6 m, straight length

In bundles wrapped in plastic foil









packaging method: in bundles wrapped in plastic foil





In our offer we also have:

            ● Soft copper tubes

            ● Half - hard copper tubes

            ● Hard copper tubes

            ● PVC coated copper tubes

            ● Copper tubes for LPG vehicles

            ● Conductors, cables and wire

            ● Trolley wire



Click on the links above to see more product details.
