soft copper tubes

Bright annealed copper tube in coils it is CU DHP copper alloy pipe complying with European Standard EN 1057 - annealed in coils and phosphorous-deoxidised, with minimum 99,9% copper content and 0,015 - 0,040% phosphorous with Imperial or Metric dimensions.

:: Soft (annealed) copper pipes uses include:





Copper tubes - dimensions, allowable pressures and weights

DxS (mm)

6x1

8x1

10x1

12x1

15x1

16x1

18x1

22x1

28x1,5

35x1,5

42x1,5

54x2

76x2,5

Pressure (bar)*

145

109

87

71

57

52

48

38

46

36

30

31

25

Weight (kg/m)

0,140

0,197

0,253

0,309

0,393

0,421

0,477

0,590

1,116

1,411

1,705

2,919

5,158

* Values indicated for pressure in the table above are computed for soft tubes with safety factor N=5. Values indicated for allowable pressure relate only to tubes, not to their joints.



Weight and maximum allowable working pressure of fluids are computed using the following equations for each copper tube size:

For weight:

For pressure:

Q = (D - S) x S x π x γ, gr/m

P = 200 Rm S / DN, bara

where: where:
D - outer diameter, mm 200 - conversion constant
S - wall thickness, mm Rm - tensile strength, N/mm²
γ - specific weight of copper, 8.94 kg/dm³ S - wall thickness, mm
π - 3,14 D - outer diameter, mm
  N - safety factor (5)

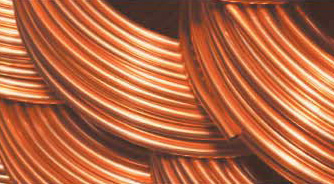

::  Soft copper tubes (Bright annealed copper tube in coils) R220



  • Available in 25, 50 & 66 Metre coils with or without PVC cover

    •

    Mechanical properties according to EN 1057 for soft copper tubes

    Temper

    Temper designation

    Tensile strength (N/mm²)

    Elongation (%) A5

    Hardness HV5 (approximately)

    soft

    R220

    min. 220

    40

    		 40 - 70



    Delivery conditions and packaging for soft copper tubes

    Temper designation

    Outer Diameter (mm)

    Wall thickness (mm)

    Delivery condition

    Packaging

    R220 5 – 22 0,5 – 2,0 25 and 50m coils Cardboard boxes on palettes
    R220 6 – 20 0,5 – 1,0 LW coil, 80-120 kg weight Cardboard boxes on palettes
    R220 5 – 76 0,5 – 2,5 up to 6 m, straight length Cardboard boxes on palettes





    packaging coils

    packaging LWC

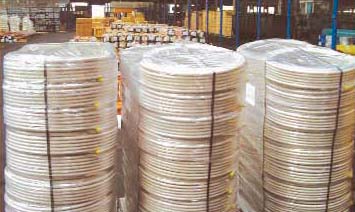

    PVC coated copper tubes delivery method



    ::  Plastic coated copper tubes - sizes, weight and allowable pressures:

    For more aggressive environments, copper tube with a PVC sheath may be an effective method of protection against attack.
    The PVC is tightly extruded onto the tube and is available in black and white colors with blue or red print according to customer requirements. Available in Imperial and Metric dimensions.

    DxS (mm) 6x0,8 8x0,8 10x0,8 12x0,8 15x0,8 16x0,8 18x0,8 22x1,0
    Weight (kg/m)* 0,117 0,162 0,207 0,252 0,319 0,341 0,386 0,590
    Flow (l/m) 0,015 0,032 0,055 0,085 0,141 0,163 0,211 0,314
    Pressure (bar)* 115 87 69 58 46 44 39 38

    * Copper tube weight only (excluding PVC coat)
    ** For soft copper tubes and safety factor N=5

    Standard delivery conditions for plastic-coated copper tubes


    Temper designation Tube diameter (mm)* Delivery condition* Packaging
    R220 (soft)

    18 -22

    25 m coil

    		palette
    R220 (soft)

    6 -16

    50m coil

    		palette

    * Values indicated in the table relate to outer diameter (excluding PVC coat). PVC coat thickness ranges from 1.4 to 2.0 mm.
